Pre-Set Torque Wrenches

6 Inch Handle  |   8 Inch Handle  |   8 HD Handle  |   12 HD Handle  |   Crowfoot Style with Offset  |   Custom Presets  |   Nuclear Power Applications

General Information

Breakover Mechanism: Our torque wrenches are designed to have a unique breakover action. When the preset torque is reached, the handle moves smoothly through 17⁰ of rotation without exceeding the preset torque. This design eliminates torque overshoot by allowing the user time to release pressure on the handle. Accuracy is plus or minus 5% of the preset torque setting. The black rubber bellows keeps the breakover mechanism free of dirt and the plastic handle locates the user's hand for repeatable torque application.

All tools are preset at the factory. Please choose a torque setting within the specified range. We assume the units of torque are in inch pounds unless you specify otherwise. We will label the torque setting of your tool in the units that you specify. Please note that if you have selected a small tool head size, it will not necessarily withstand the entire torque range of the handle and this may further limit the allowable torque range. We will advise you if we feel that the torque setting you have selected is too high for the tool head.

Unless otherwise stated by certification at the time of purchase, the accuracy of all Keltek Preset Torque Wrenches is rated at plus or minus 5 percent of the preset torque setting when wrench is properly calibrated. Calibration services or instructions are available.

Metric & unusual sizes are available. Please contact Keltek to request a quote.

6 Inch Handle (3-60 inch pounds)

Keltek Standard Preset Torque Model Number and Price List 6 & 8 inch handles
User Instructions for Keltek 6 and 8 inch Torque Wrenches with Plastic Grips
Calibration Instructions for Keltek Breakover Preset Torque Wrenches (6 and 8-inch long, 5/8-inch diameter handles with plastic grip)

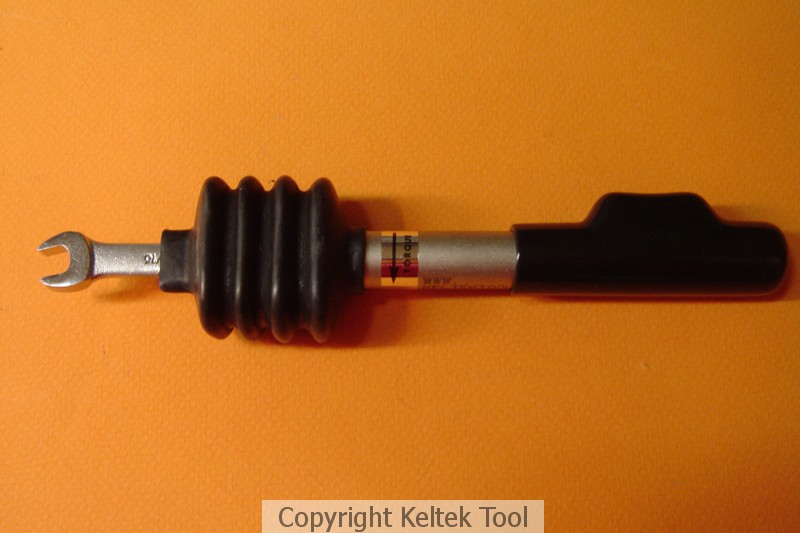

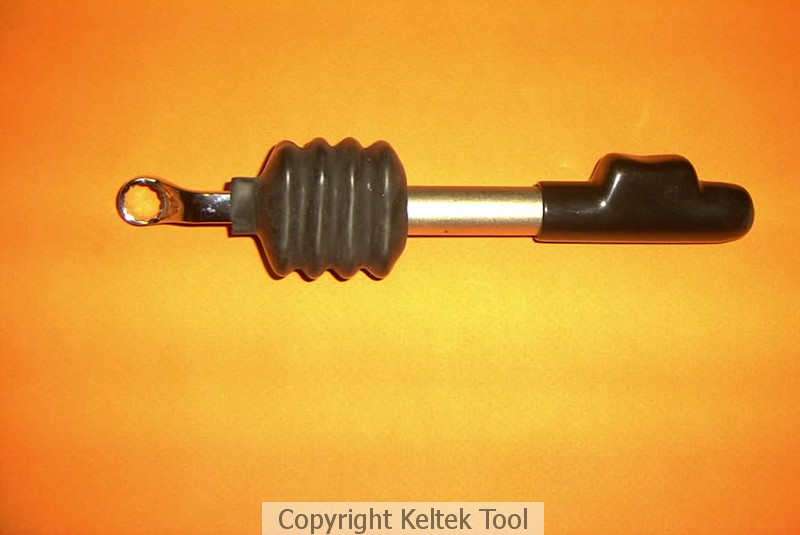

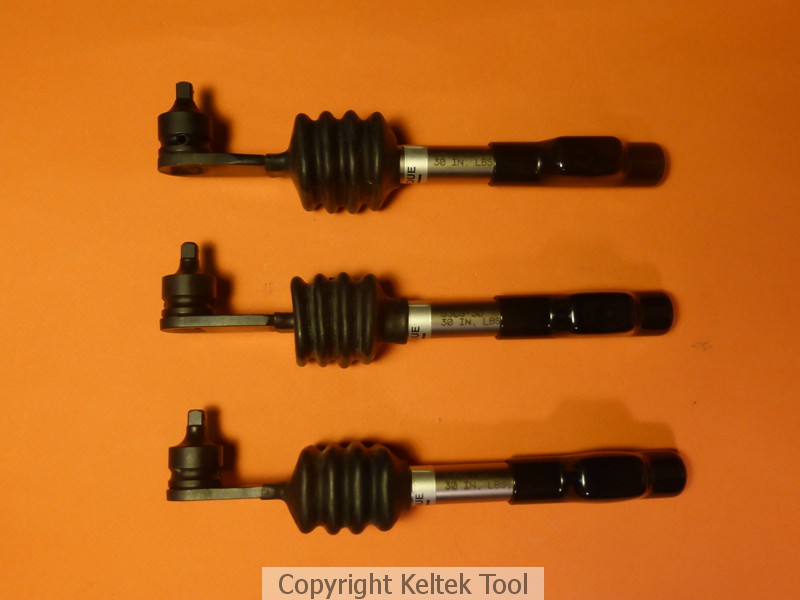

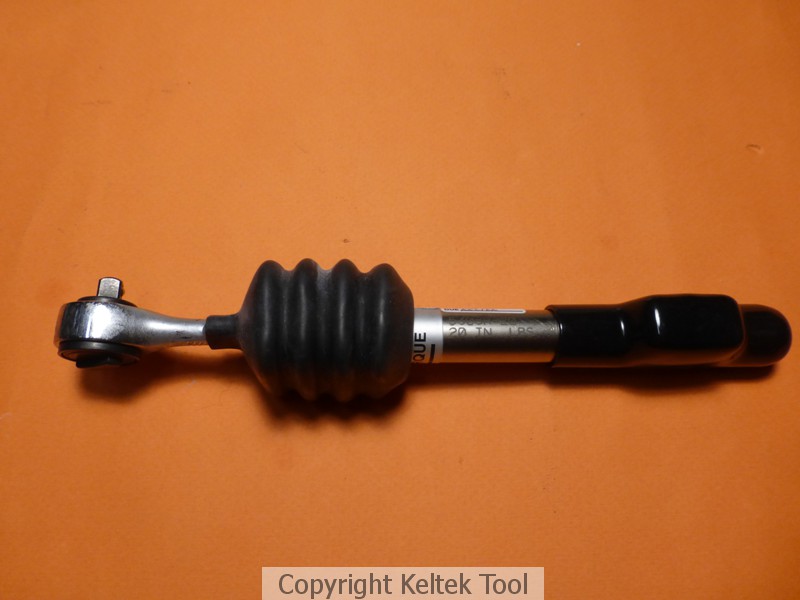

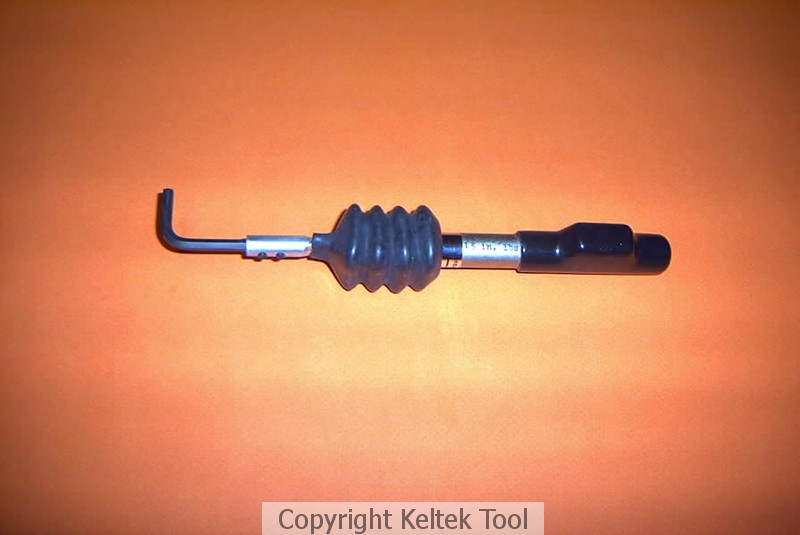

1010 Open End 6 in Handle1010 Open End 6 in Handle 1020 Box End 6 in Handle1020 Box End 6 in Handle 1030 Hex Key End 6 in Handle1030 Hex Key End 6 in Handle 1040 Square Drive Fixed Head 6 in Handle1040 Square Drive Fixed Head 6 in Handle 1050 Square Drive Ratcheting Head 6 in Handle1050 Square Drive Ratcheting Head 6 in Handle Html Gallery Creator by VisualLightBox.com v5.3

8 Inch Handle (20-180 inch pounds)

Keltek Standard Preset Torque Model Number and Price List 6 & 8 inch handles
User Instructions for Keltek 6 and 8 inch Torque Wrenches with Plastic Grips
Calibration Instructions for Keltek Breakover Preset Torque Wrenches (6 and 8-inch long, 5/8-inch diameter handles with plastic grip)

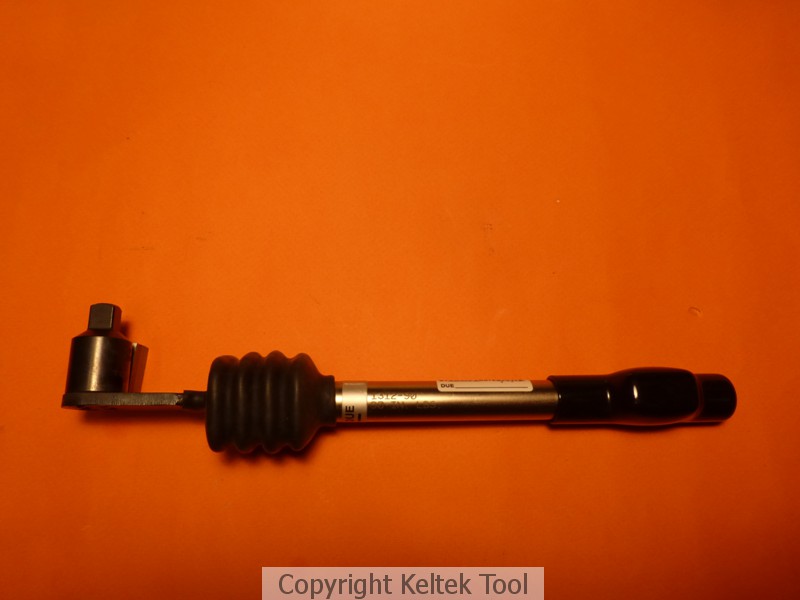

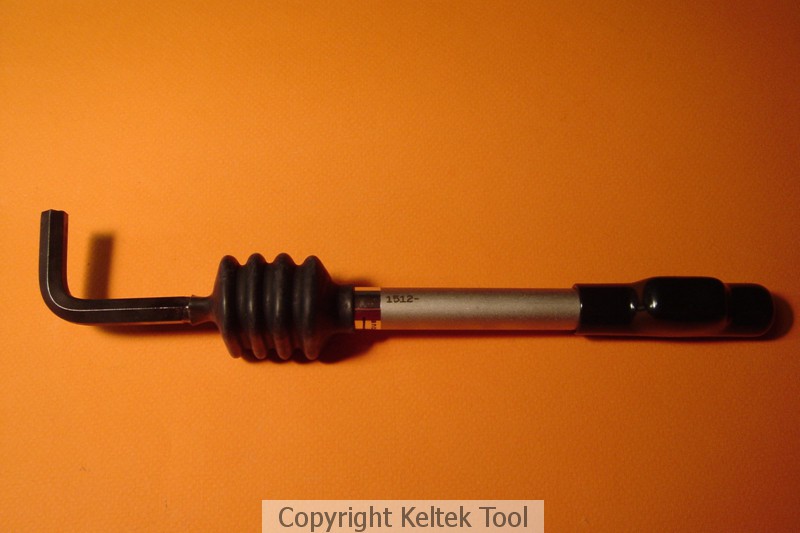

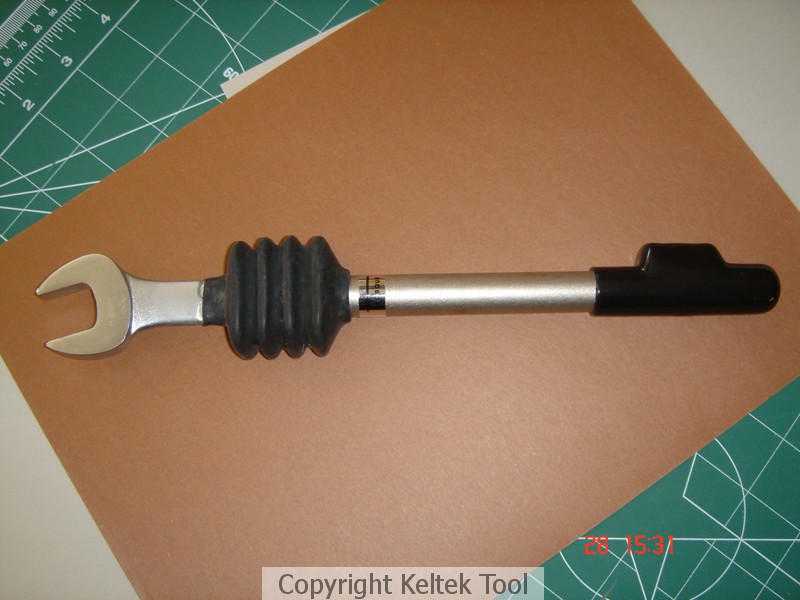

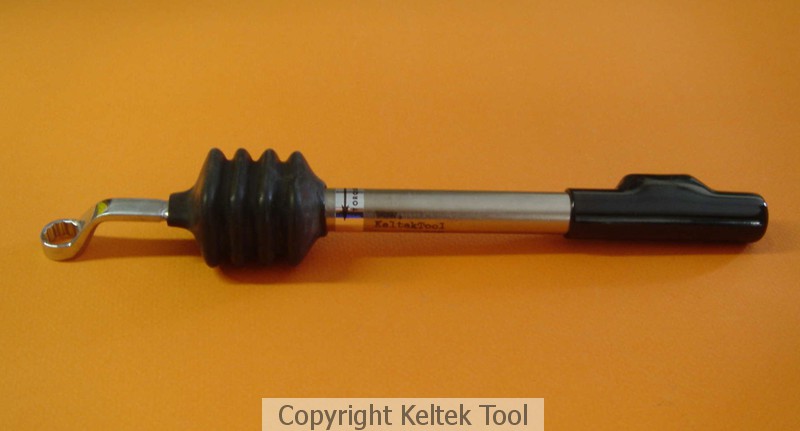

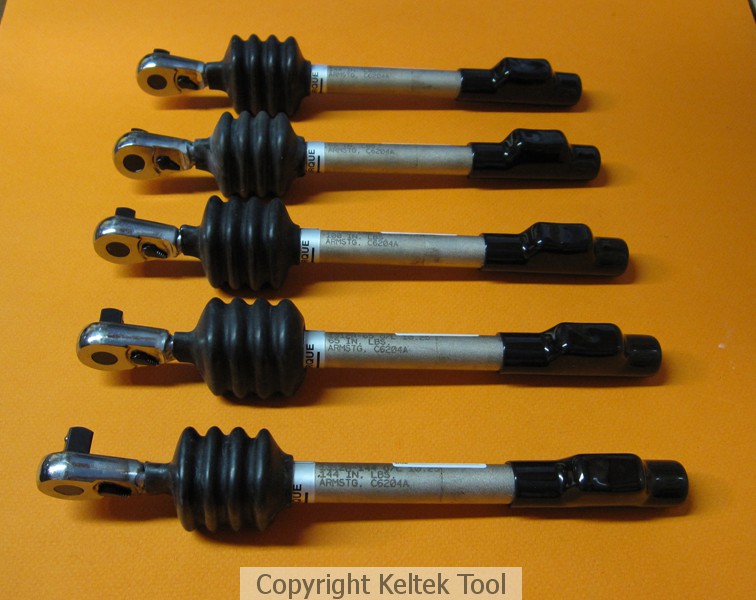

1060 Open End 8 in Handle1060 Open End 8 in Handle 1070 Box End 8 in Handle1070 Box End 8 in Handle 1080 Hex Key End 8 in Handle1080 Hex Key End 8 in Handle 1090 Square Drive Fixed Head 8 in Handle1090 Square Drive Fixed Head 8 in Handle 1100 Square Drive Ratcheting Head 8 in Handle1100 Square Drive Ratcheting Head 8 in Handle Html Gallery Creator by VisualLightBox.com v5.3

8 HD Handle (175 to 500 inch pounds)

Keltek Standard Preset Torque Model Number and Price List 8 & 12HD inch handles
User Instructions for Keltek 8 and 12 Heavy Duty Breakover Preset Torque Wrenches
Calibration Instructions for Keltek Heavy Duty Breakover Preset Torque Wrenches (8 and 12-inch long, 1-inch diameter handles with knurled grip)

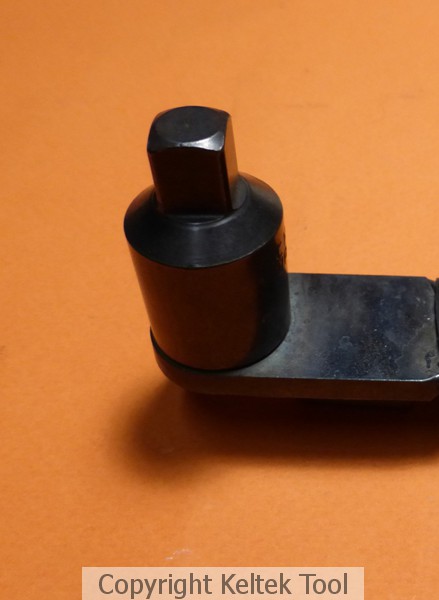

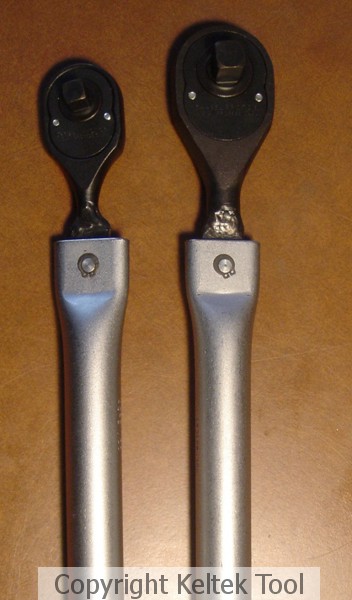

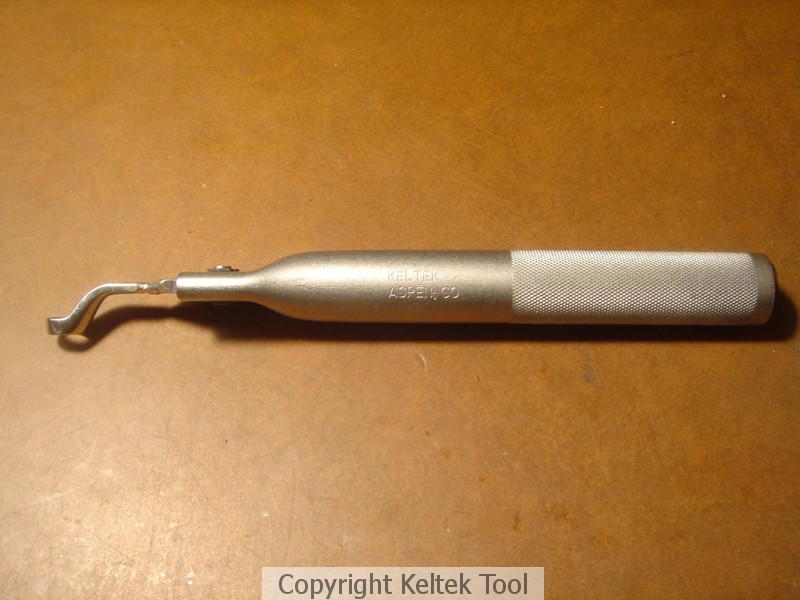

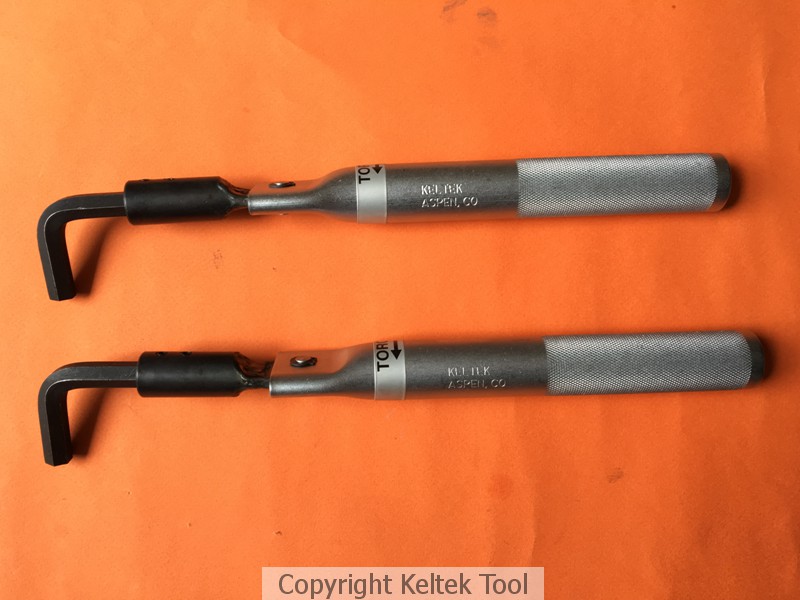

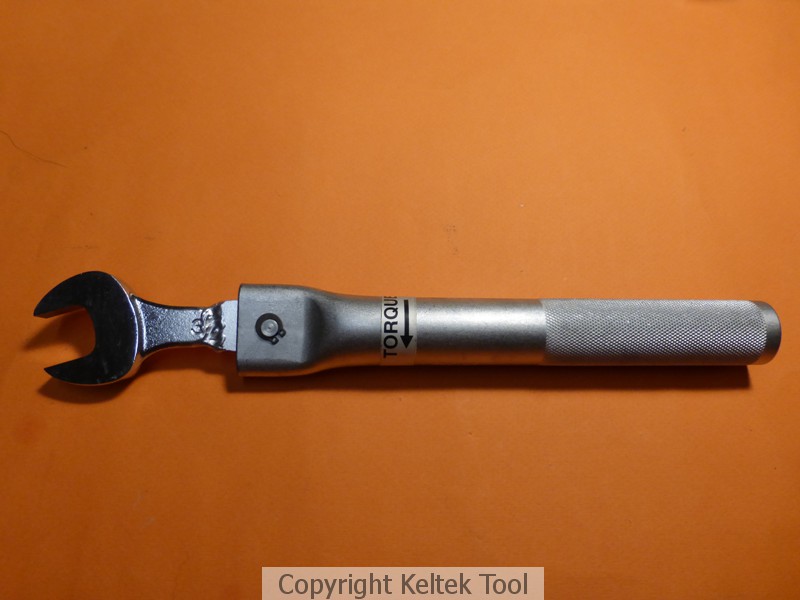

1110 Open End 8 HD in Handle1110 Open End 8 HD in Handle 1120 Box End 8 HD in Handle1120 Box End 8 HD in Handle 1130 Hex Key End 8 HD in Handle1130 Hex Key End 8 HD in Handle 1140 Square Drive Fixed head 8 HD Handle1140 Square Drive Fixed head 8 HD Handle 1150 Square Drive Ratcheting Head 8 HD in Handle1150 Square Drive Ratcheting Head 8 HD in Handle Html Gallery Creator by VisualLightBox.com v5.3

12 HD Handle (175 to 500 inch pounds)

Keltek Standard Preset Torque Model Number and Price List 8 & 12HD inch handles
User Instructions for Keltek 8 and 12 Heavy Duty Breakover Preset Torque Wrenches
Calibration Instructions for Keltek Heavy Duty Breakover Preset Torque Wrenches (8 and 12-inch long, 1-inch diameter handles with knurled grip)

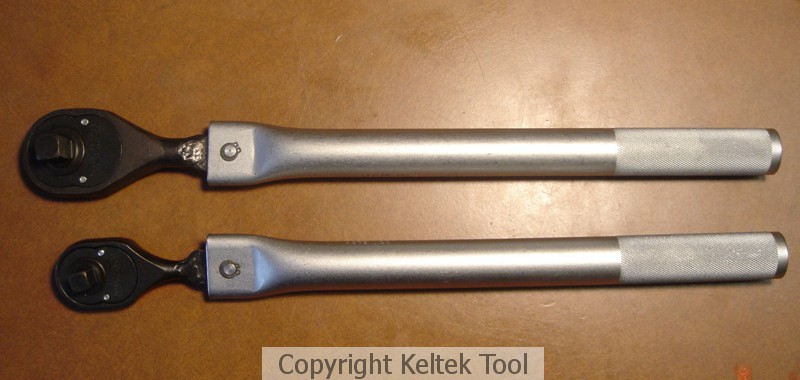

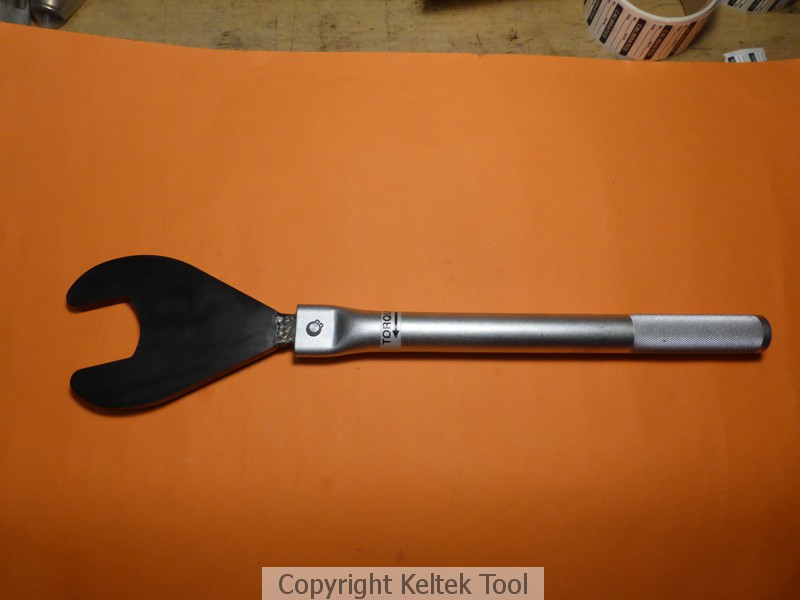

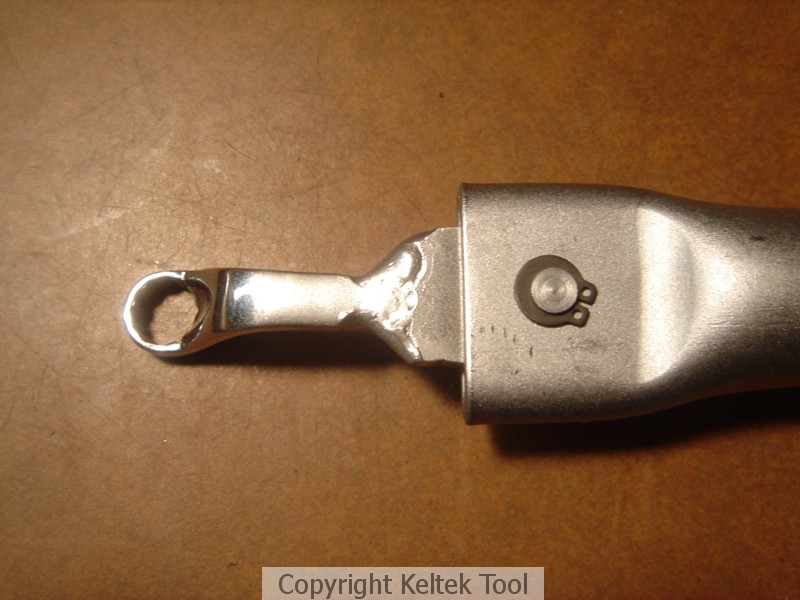

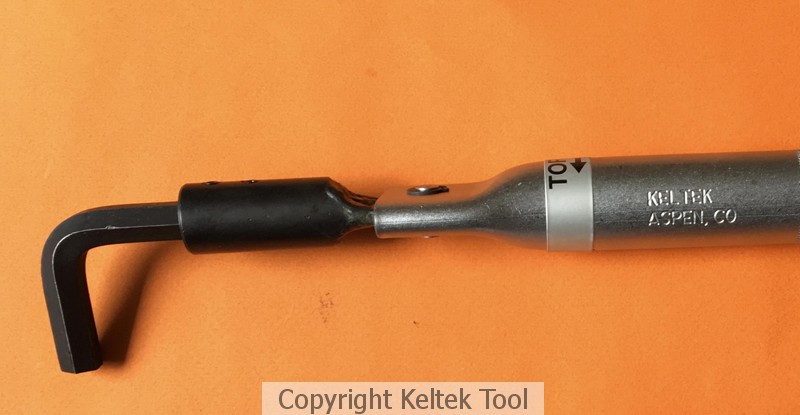

1160 Open End 12 HD in Handle1160 Open End 12 HD in Handle 1170 Box End 12 HD in Handle1170 Box End 12 HD in Handle 1180 Hex Key End 12 HD Handle1180 Hex Key End 12 HD Handle 1190 Square Drive Fixed head 12 HD Handle1190 Square Drive Fixed head 12 HD Handle 1200 Square Drive Ratcheting Head 12 HD in Handle1200 Square Drive Ratcheting Head 12 HD in Handle Html Gallery Creator by VisualLightBox.com v5.3

Crowfoot Style with Offset

These torque wrenches incorporate an open- end crowfoot style tool head with an offset. These tools are to be used were an offset is required for clearance. The customer must choose offset shown by the arrow in the photo. More styles and sizes are available. Please contact Keltek to request a quote.

Present Torque Wrench - Crowfoot Style with Offset Present Torque Wrench - Crowfoot Style with Offset and 6 Inch Handle Present Torque Wrench - Crowfoot Style with Offset and 6 Inch Handle Present Torque Wrench - Crowfoot Style with Offset

Keltek Preset Torque Crowfoot Style with Offset Model & Price List

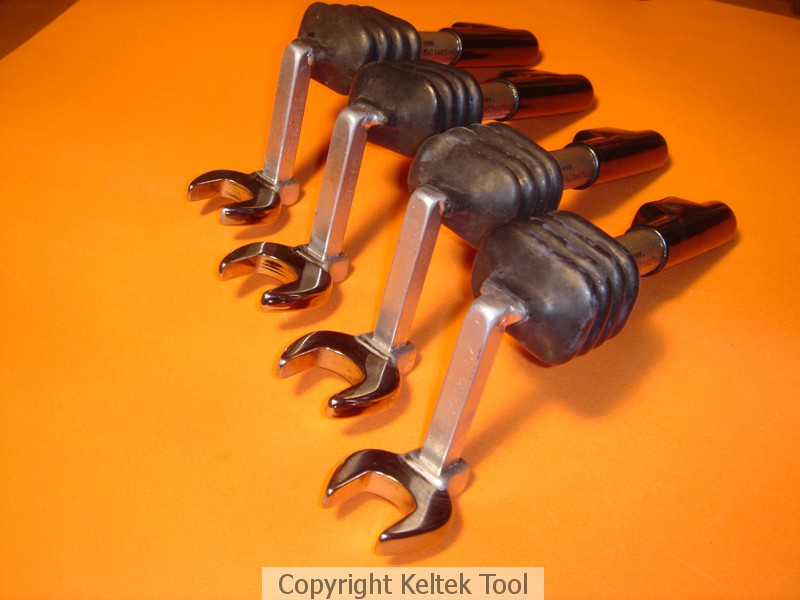

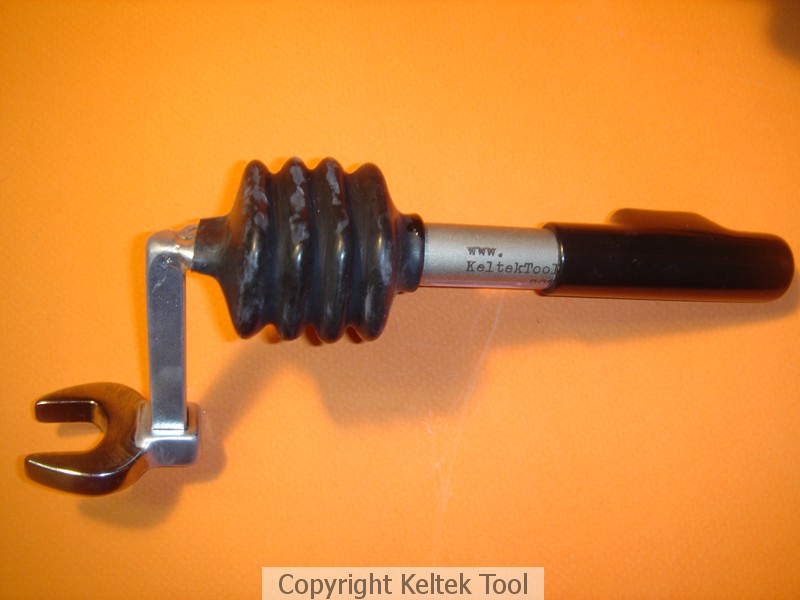

1210 Crowfoot Open End w Offset1210 Crowfoot Open End w Offset 1211 Crowfoot Open End w Offset Close Up1211 Crowfoot Open End w Offset Close Up Html Gallery Creator by VisualLightBox.com v5.3

Custom Presets

General Information: There are many variations for these tools. They are made to order and not stocked. Please contact Keltek to request a quote.

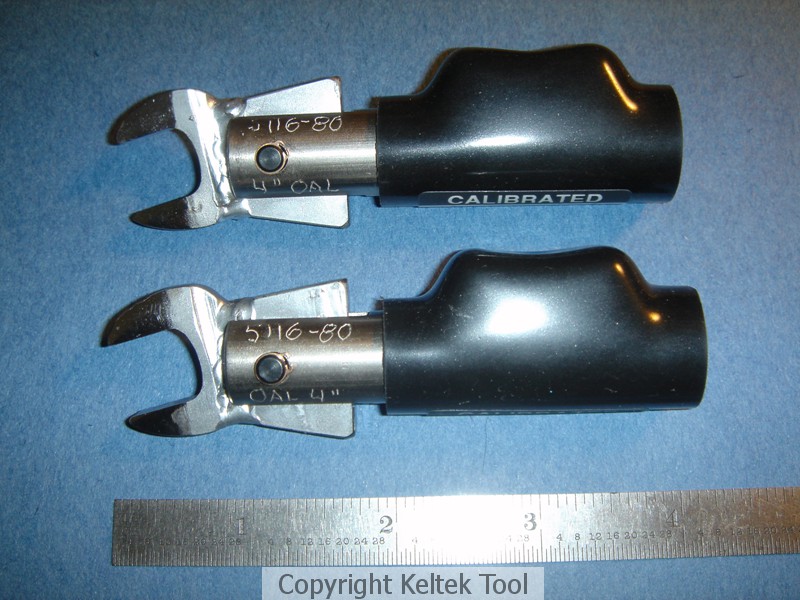

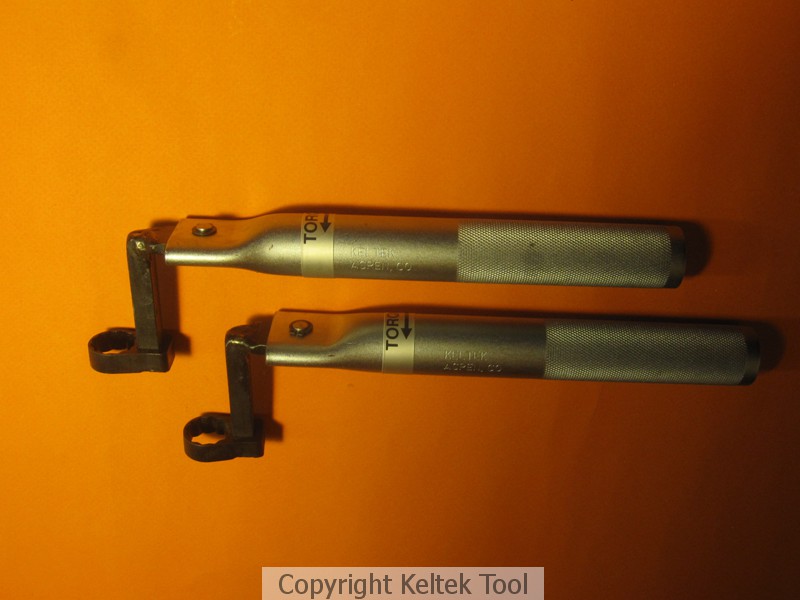

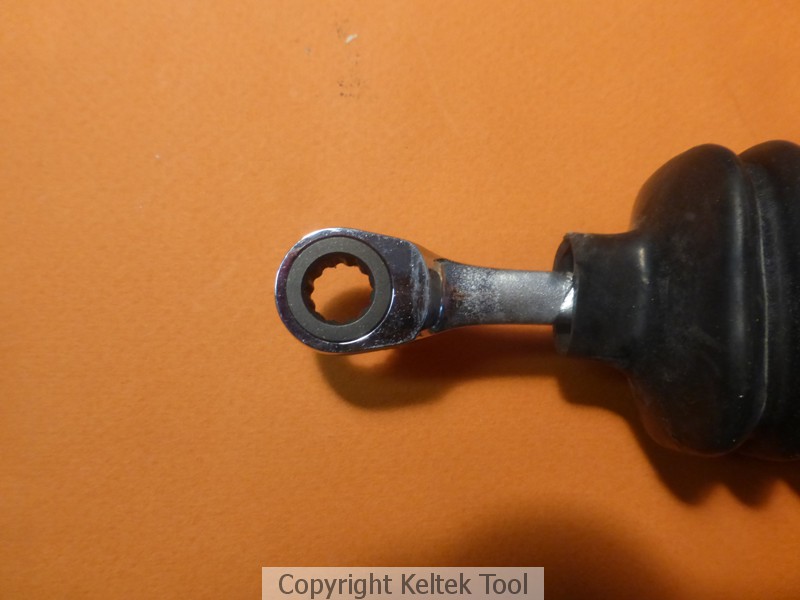

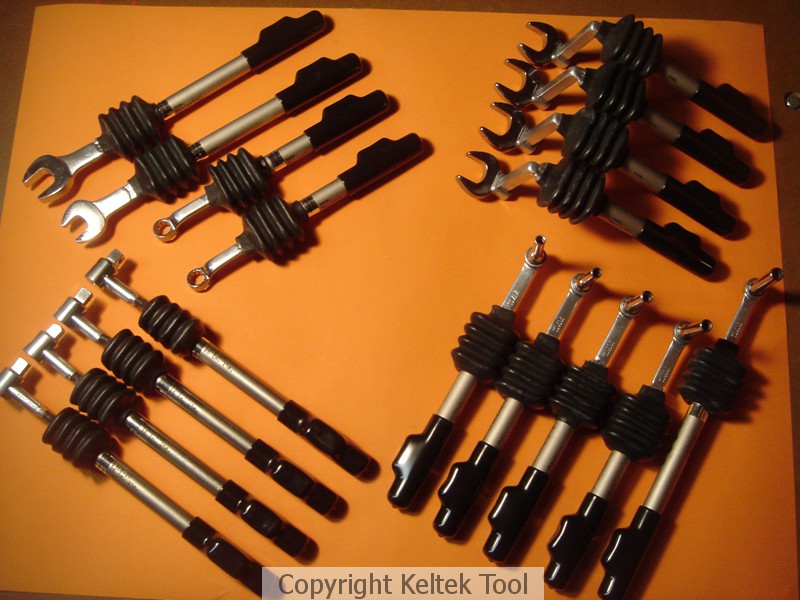

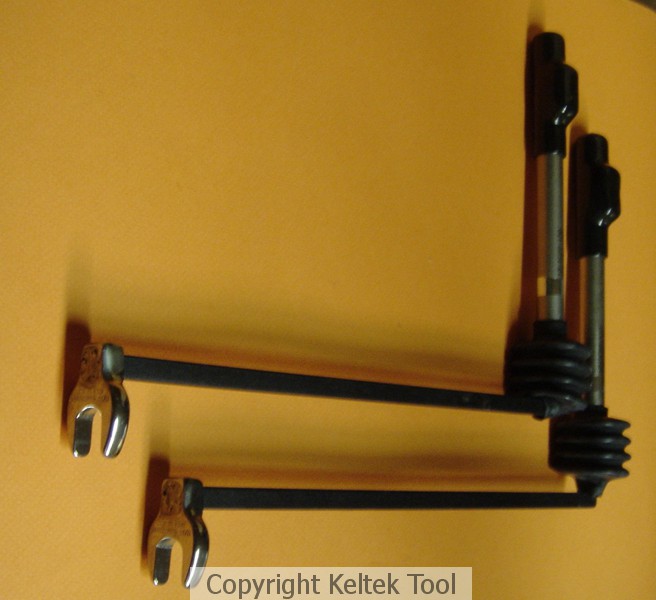

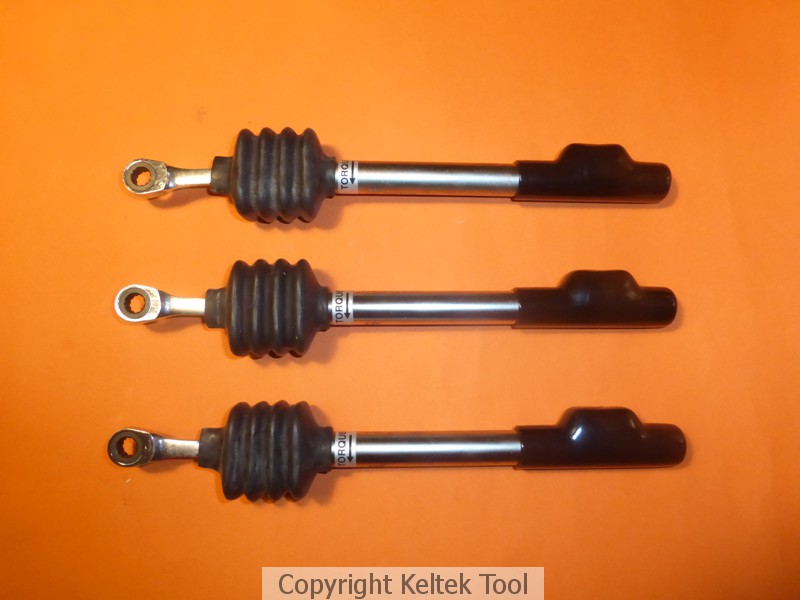

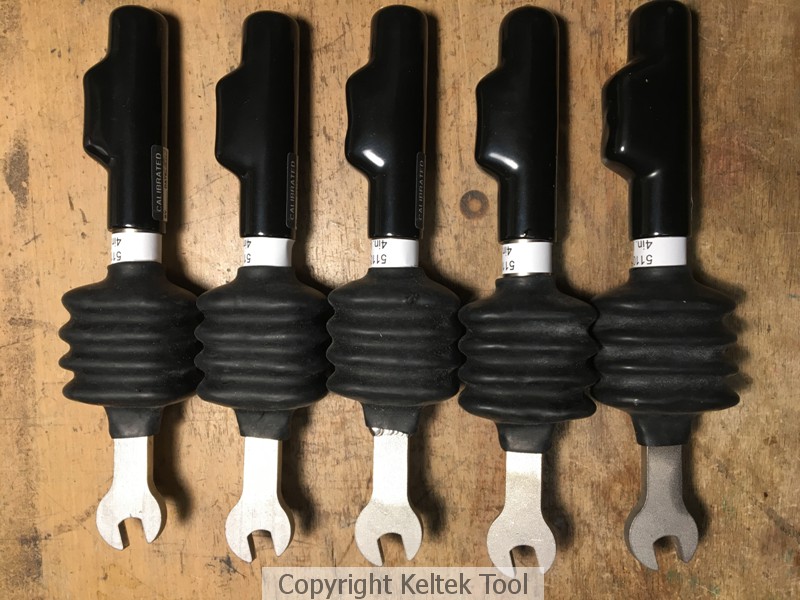

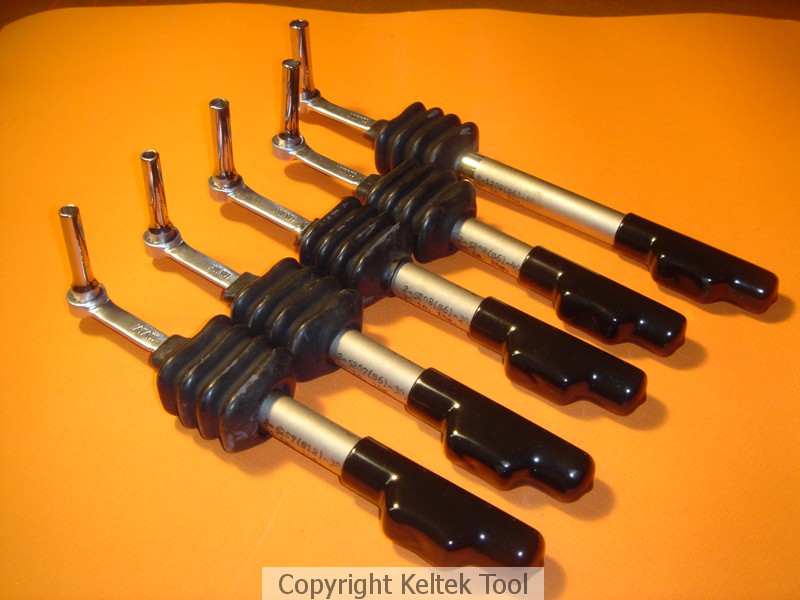

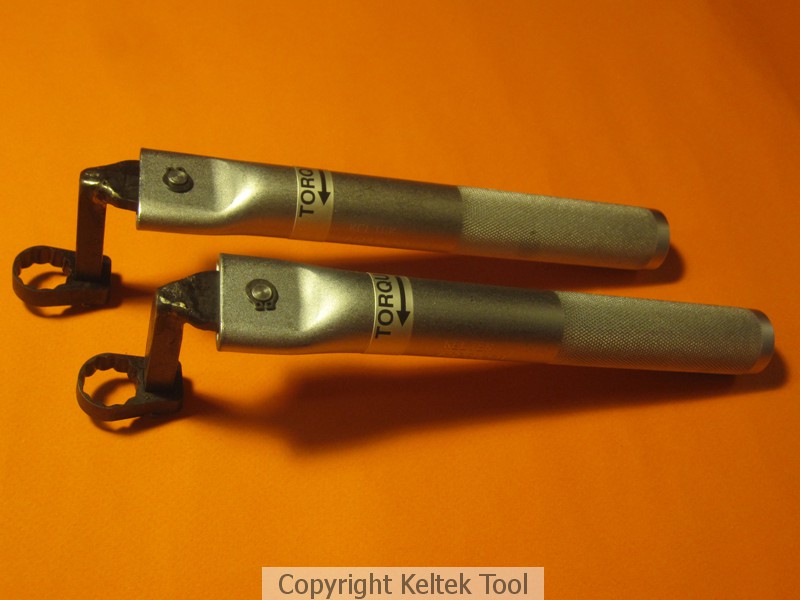

1220 Various1220 Various 1230 Stainless Steel Heads1230 Stainless Steel Heads 1240 Deep Socket Heads1240 Deep Socket Heads 1250 Ratcheting Box Head1250 Ratcheting Box Head 1251 Ratcheting Box Head Close Up1251 Ratcheting Box Head Close Up 1260 Adjustable Open End Head1260 Adjustable Open End Head 1270 Box Crowfoot with Offset 1270 Box Crowfoot with Offset 1271 Box Crowfoot with Offset1271 Box Crowfoot with Offset 1272 Open Crowfoot with Large Offset1272 Open Crowfoot with Large Offset 1280 Very Short Handle1280 Very Short Handle Html Gallery Creator by VisualLightBox.com v5.3

Nuclear Power Applications

This S300 series of breakover torque wrenches contains circular pin spanner and open end tool heads specifically designed for nuclear power applications. When the preset torque is reached, the handle moves smoothly through 17 degrees of rotation without exceeding the preset torque. This design eliminates torque overshoot by allowing the user time to release pressure on the handle.Accuracy is plus or minus 5% of the preset torque setting. The black rubber bellows keeps the breakover mechanism free of dirt and the plastic handle locates the user's hand for repeatable torque application.

Made to Whittaker Electronics Resources Drawing #127781 and Combustion Engineering Sketch SK-DS-013190.

Keltek Preset Torque Wrenches for Nuclear Applications Model & Price List

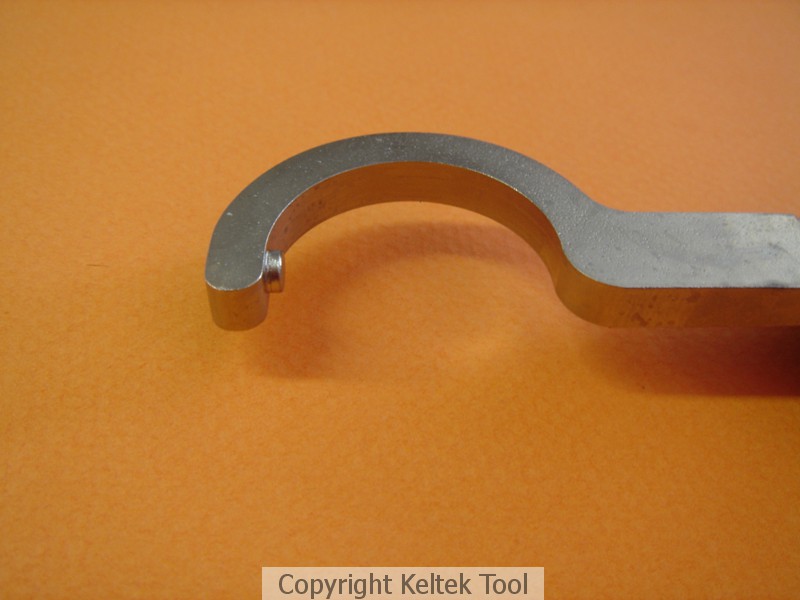

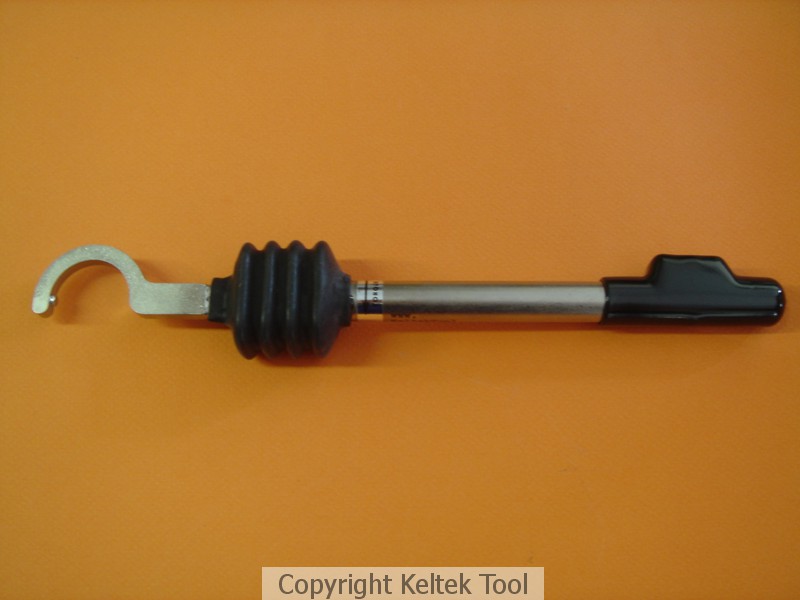

1290 Nuclear Application Circular Spanner Torque Wrench1290 Nuclear Application Circular Spanner Torque Wrench 1291 Nuclear Application Circular Spanner Torque Wrench - Close up1291 Nuclear Application Circular Spanner Torque Wrench - Close up Html Gallery Creator by VisualLightBox.com v5.3

Keltek - Torque Wrenches Warranty
LIMITED WARRANTY FOR KELTEK TORQUE TOOLS

All tools manufactured by Keltek are guaranteed to be free from defects in material and workmanship. If a tool fails to perform its intended function within 1 year of the date of purchase due to such defect (excluding calibration), please contact us.  We will repair or replace tools that have failed due to material or workmanship and return them post-paid. Tools that have failed due to improper usage or mistreatment will be repaired or replaced and returned to the purchaser subject to charges. Tools must be returned prepaid after first contacting Keltek.

Keltek warrants that torque tools arrive calibrated to the specifications ordered. Our calibrations are traceable to National Bureau of Standards. Note: torque tools must be periodically tested to check for accuracy and recalibrated if necessary. Frequency of recalibration is a function of the industry requirements, frequency of use, and torque value.
